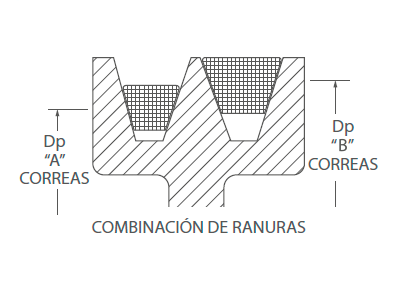

| Ref. Intermec | Ref. Internacional | Diam. Exterior (De) | Diam. Primitivo (Dp) Perfil A | Diam. Primitivo (Dp) Perfil B | Buje | Diseño | E | K | L | M | Peso kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4B95 SD | 4B34 SD | 3,75 " | 3,00 " | 3,40 " | SD | E-1 | 60,3 | 7,9 | 46,0 | 23,8 | 1,9 |
| 4B100 SD | 4B36 SD | 3,95 " | 3,20 " | 3,60 " | SD | E-1 | 60,3 | 7,9 | 46,0 | 23,8 | 2,3 |
| 4B105 SD | 4B38 SD | 4,15 " | 3,40 " | 3,80 " | SD | E-1 | 60,3 | 7,9 | 46,0 | 23,8 | 2,3 |
| 4B110 SD | 4B40 SD | 4,35 " | 3,60 " | 4,00 " | SD | E-1 | 52,4 | - | 46,0 | 15,9 | 2,8 |
| 4B115 SD | 4B42 SD | 4,55 " | 3,80 " | 4,20 " | SD | E-1 | 52,4 | - | 46,0 | 15,9 | 3,2 |
| 4B120 SD | 4B44 SD | 4,75 " | 4,00 " | 4,40 " | SD | E-1 | 52,4 | - | 46,0 | 15,9 | 3,2 |
| 4B125 SD | 4B46 SD | 4,95 " | 4,20 " | 4,60 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 3,2 |
| 4B130 SD | 4B48 SD | 5,15 " | 4,40 " | 4,80 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 3,7 |
| 4B135 SD | 4B50 SD | 5,35 " | 4,60 " | 5,00 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 4,1 |
| 4B140 SD | 4B52 SD | 5,55 " | 4,80 " | 5,20 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 4,6 |
| 4B145 SD | 4B54 SD | 5,75 " | 5,00 " | 5,40 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 4,8 |
| 4B150 SD | 4B56 SD | 5,95 " | 5,20 " | 5,60 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 5,0 |
| 4B155 SD | 4B58 SD | 6,15 " | 5,40 " | 5,80 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 5,5 |
| 4B160 SD | 4B60 SD | 6,35 " | 5,60 " | 6,00 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 5,7 |
| 4B165 SD | 4B62 SD | 6,55 " | 5,80 " | 6,20 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 5,9 |
| 4B170 SD | 4B64 SD | 6,75 " | 6,00 " | 6,40 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 6,4 |
| 4B175 SD | 4B66 SD | 6,95 " | 6,20 " | 6,60 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 6,6 |
| 4B180 SD | 4B68 SD | 7,15 " | 6,40 " | 6,80 " | SD | A-1 | 17,5 | 33,3 | 46,0 | 19,1 | 6,9 |
| 4B185 SK | 4B70 SK | 7,35 " | 6,60 " | 7,00 " | SK | A-1 | 7,9 | 25,4 | 49,2 | 25,4 | 7,1 |
| 4B195 SK | 4B74 SK | 7,75 " | 7,00 " | 7,40 " | SK | A-1 | 7,9 | 25,4 | 49,2 | 25,4 | 7,3 |
| 4B210 SK | 4B80 SK | 8,35 " | 7,60 " | 8,00 " | SK | A-1 | 7,9 | 25,4 | 49,2 | 25,4 | 7,8 |
| 4B225 SK | 4B86 SK | 8,95 " | 8,20 " | 8,60 " | SK | A-3 | 7,9 | 25,4 | 49,2 | 25,4 | 8,2 |
| 4B250 SK | 4B94 SK | 9,75 " | 9,00 " | 9,40 " | SK | A-3 | 7,9 | 25,4 | 49,2 | 25,4 | 8,7 |
| 4B290 SK | 4B110 SK | 11,35 " | 10,60 " | 11,00 " | SK | A-3 | 7,9 | 25,4 | 49,2 | 25,4 | 10,9 |
| 4B325 SK | 4B124 SK | 12,75 " | 12,00 " | 12,40 " | SK | A-3 | 7,9 | 25,4 | 49,2 | 25,4 | 11,8 |
| 4B355 SK | 4B136 SK | 13,95 " | 13,20 " | 13,60 " | SK | A-3 | 7,9 | 25,4 | 49,2 | 25,4 | 12,8 |
| 4B400 SF | 4B154 SF | 15,75 " | 15,00 " | 15,40 " | SF | A-3 | 7,9 | 25,4 | 52,4 | 22,2 | 18,6 |
| 4B415 SF | 4B160 SF | 16,35 " | 15,60 " | 16,00 " | SF | A-3 | 7,9 | 25,4 | 52,4 | 22,2 | 19,1 |
| 4B475 SF | 4B184 SF | 18,75 " | 18,00 " | 18,40 " | SF | A-3 | 7,9 | 25,4 | 52,4 | 22,2 | 21,8 |
| 4B515 SF | 4B200 SF | 20,35 " | 19,60 " | 20,00 " | SF | A-3 | 7,9 | 25,4 | 52,4 | 22,2 | 26,4 |
| 4B645 E | 4B250 E | 25,35 " | 24,60 " | 25,00 " | E | A-3 | 3,2 | 25,4 | 66,7 | 12,7 | 35,4 |
| 4B770 E | 4B300 E | 30,35 " | 29,60 " | 30,00 " | E | A-3 | 3,2 | 25,4 | 66,7 | 12,7 | 42,2 |
| 4B975 E | 4B380 E | 38,35 " | 37,60 " | 38,00 " | E | A-3 | 3,2 | 25,4 | 66,7 | 12,7 | 62,6 |
| Buje | Eje min. estándar |
Ejes max. con: | ||
| Cuñero Estándar |
Cuñero Pando |
Sin Cuñero | ||
| SD | 1/2" | 1.5/8" | 1.15/16" | 2" |
| SK | 1/2" | 2.1/8" | 2.1/2" | 2.5/8", 2.9/16" |
| SF | 1/2" | 2.1/4" | 2.7/8" | 2.15/16" |
| E | 7/8" | 2.7/8" | 3.1/2" | - |
| Eje | Cuñero | Cuña |
| 1/2" - 9/16" | 1/8" x 1/16" | 1/8" x 1/8" |
| 5/8" - 7/8" | 3/16" x 3/32" | 3/16" x 3/16" |
| 15/16" - 1.1/4" | 1/4" x 1/8" | 1/4" x 1/4" |
| 1.5/16" - 1.3/8" | 5/16" x 5/32" | 5/16" x 5/16" |
| 1.7/16" - 1.3/4" | 3/8" x 3/16" | 3/8" x 3/8" |
| 1.13/16" - 2.1/4" | 1/2" x 1/4" | 1/2" x 1/2" |
| 2.5/16" - 2.3/4" | 5/8" x 5/16" | 5/8" x 5/8" |
| 2.13/16" - 3.1/4" | 3/4" x 3/8" | 3/4" x 3/4" |
| 3.5/16" - 3.3/4" | 7/8" x 7/16" | 7/8" x 7/8" |
| 3.13/16" - 4.1/2" | 1" x 1/2" | 1" x 1" |
| 4.9/16" - 5.1/2" | 1.1/4" x 5/8" | 1.1/4" x 1.1/4" |
| 5.9/16" - 6.1/2" | 1.1/2" x 3/4" | 1.1/2" x 1.1/2" |
| 6.9/16" - 7.1/2" | 1.3/4" x 7/8" | 1.3/4" x 1.3/4" |
